36 Cue Fireworks Firing System EMB36-01R

SKU:
36 Cue Fireworks Firing System EMB36-01R
5.0 (8 Reviews)
38 Sold
$193.00 $165.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • 36 Cue Fireworks Firing System EMB36-01R
  • 36 Cue Fireworks Firing System EMB36-01R
  • 36 Cue Fireworks Firing System EMB36-01R
  • 36 Cue Fireworks Firing System EMB36-01R
  • 36 Cue Fireworks Firing System EMB36-01R
  • 36 Cue Fireworks Firing System EMB36-01R
  • 36 Cue Fireworks Firing System EMB36-01R
  • Description

Product Information:
  • The video of EMB36 series fireworks firing system: https://youtu.be/_fO1aaSyXUk .
  • Four fire modes: Dividual Fire, Sequential Fire, Salvo Fire and Step Fire.
  • Programmable: The receiver learns the code of  the transmitter with the button "Learn", if the receiver or the transmitter has some problem, it can be replaced with another.
  • One transmitter can control 12 receivers to the maximum, you can choose how many receivers to be used.The receiver is programmable, it learns the code of the transmitter to number the receivers in sequence. So you can control 432 cues to the maximum, it will be fired from cue 1 to cue 432.
  • CE/FCC passed
  • Range: 250m
  • Cue: 36
  • Frequency: FSK, 433MHz

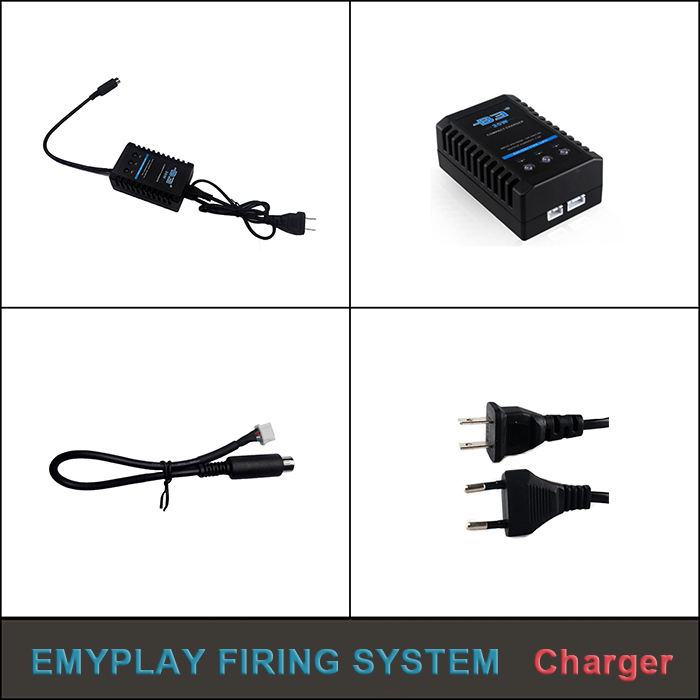

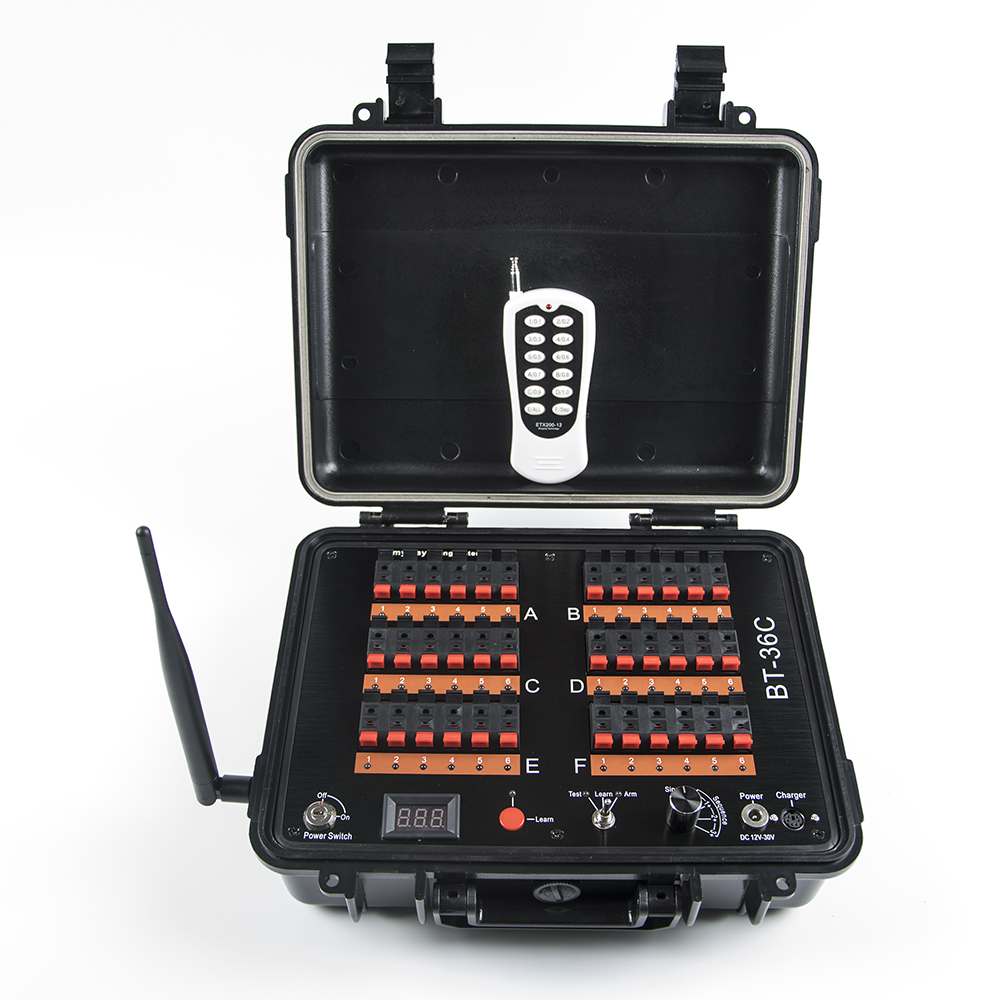

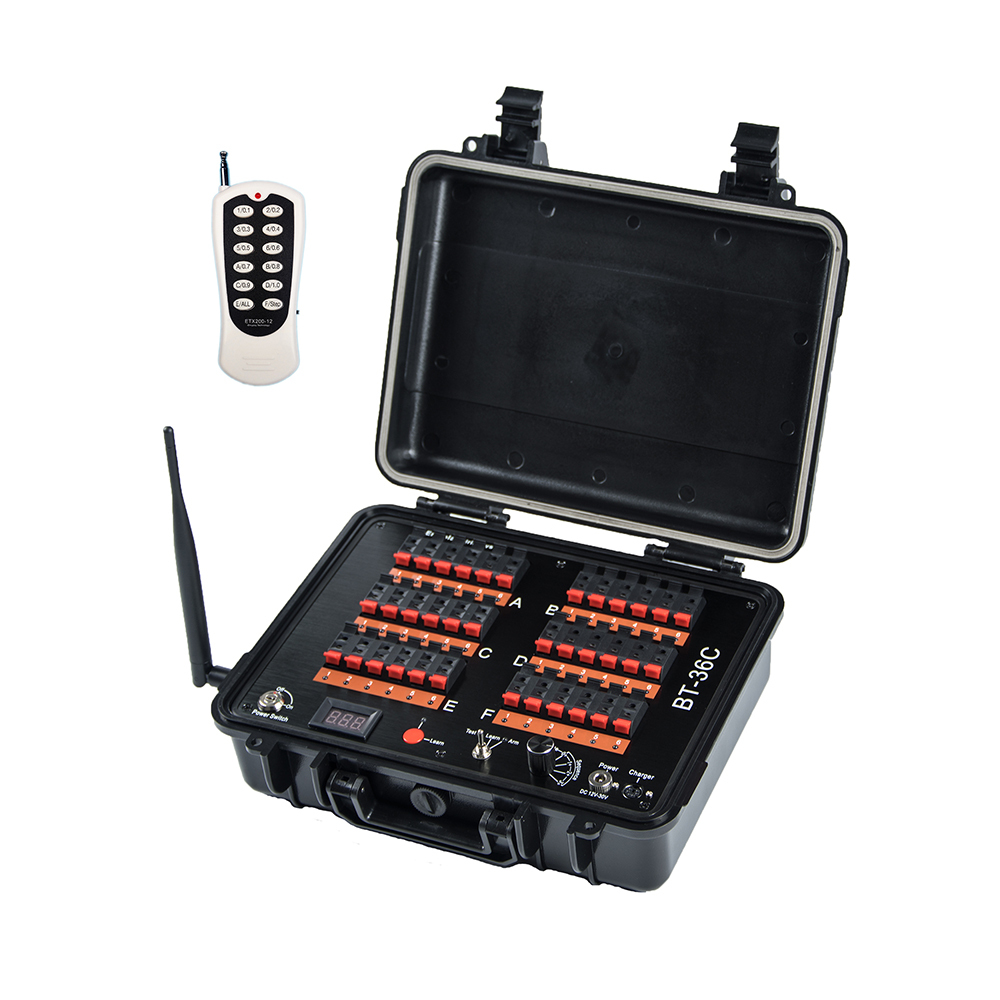

  • Included in the firing system:one  BT-36C receiver,one ETX200-12 transmitter,  one external battery wire jumper, one LI-Po battery charger.

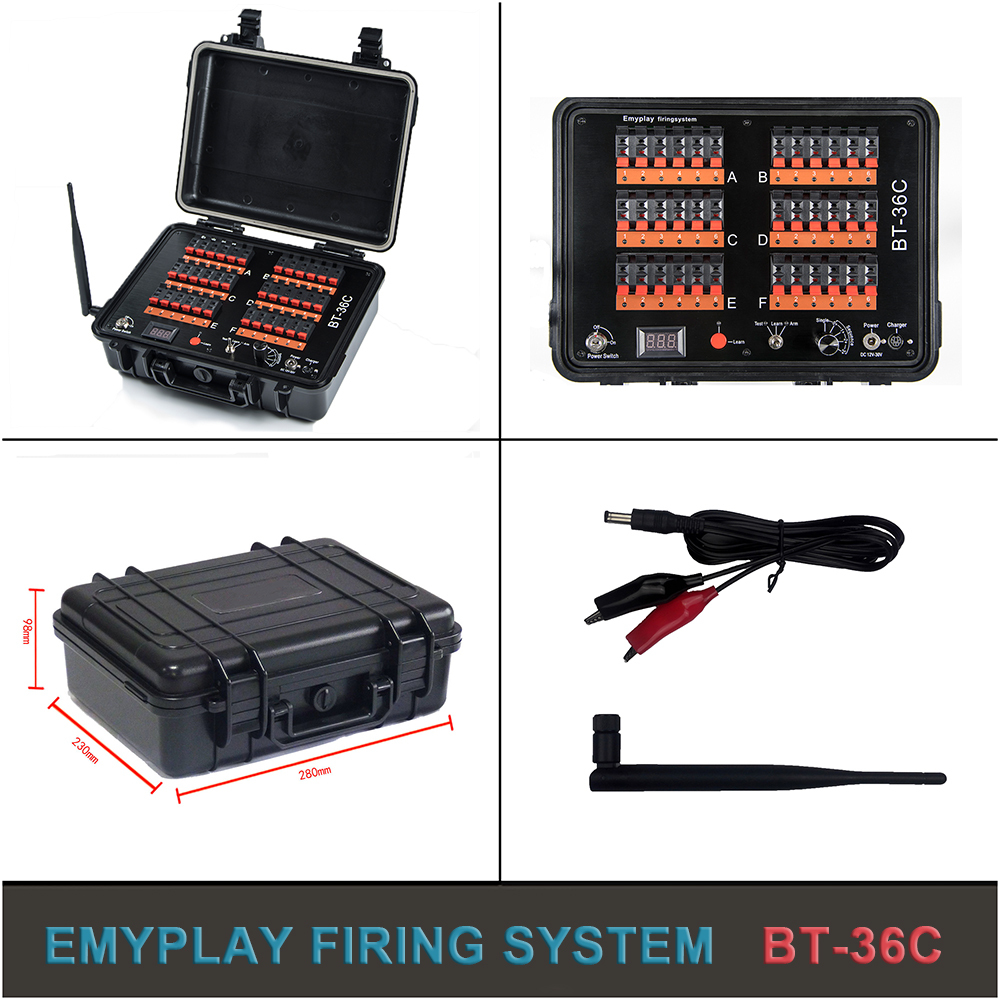

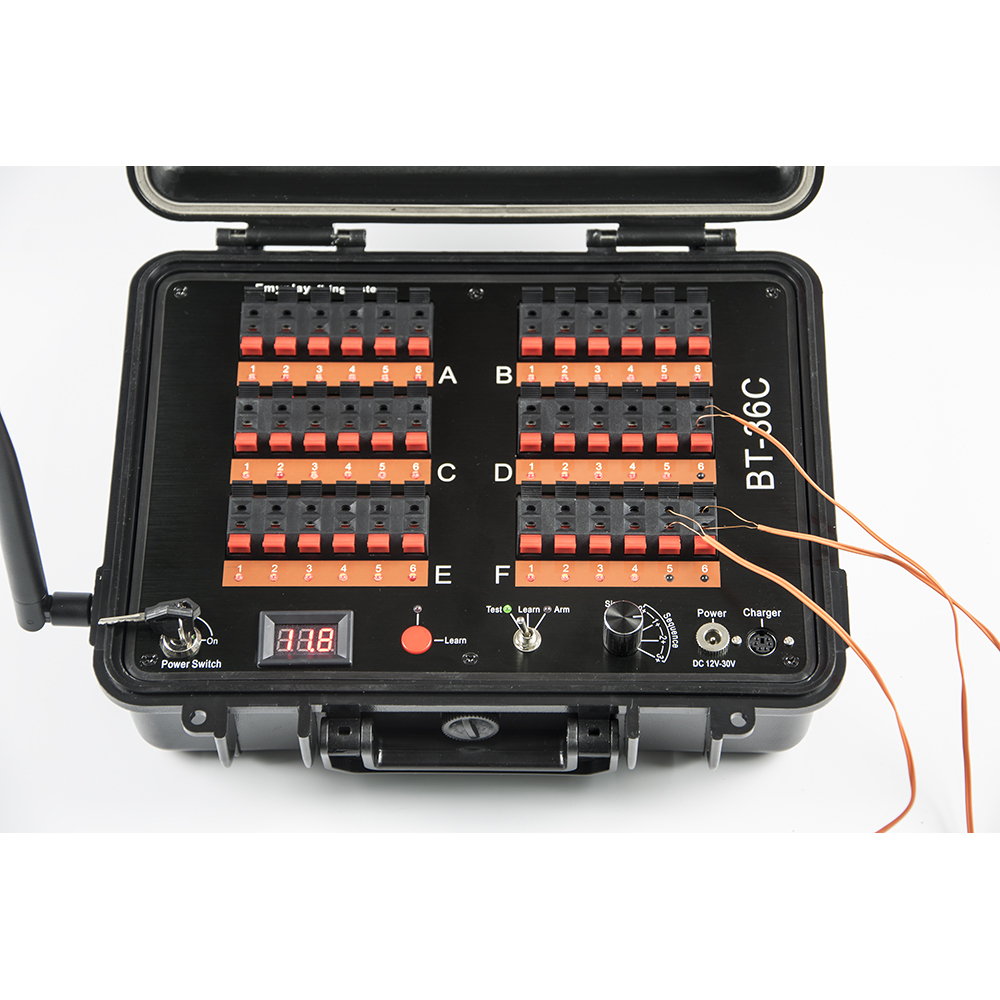

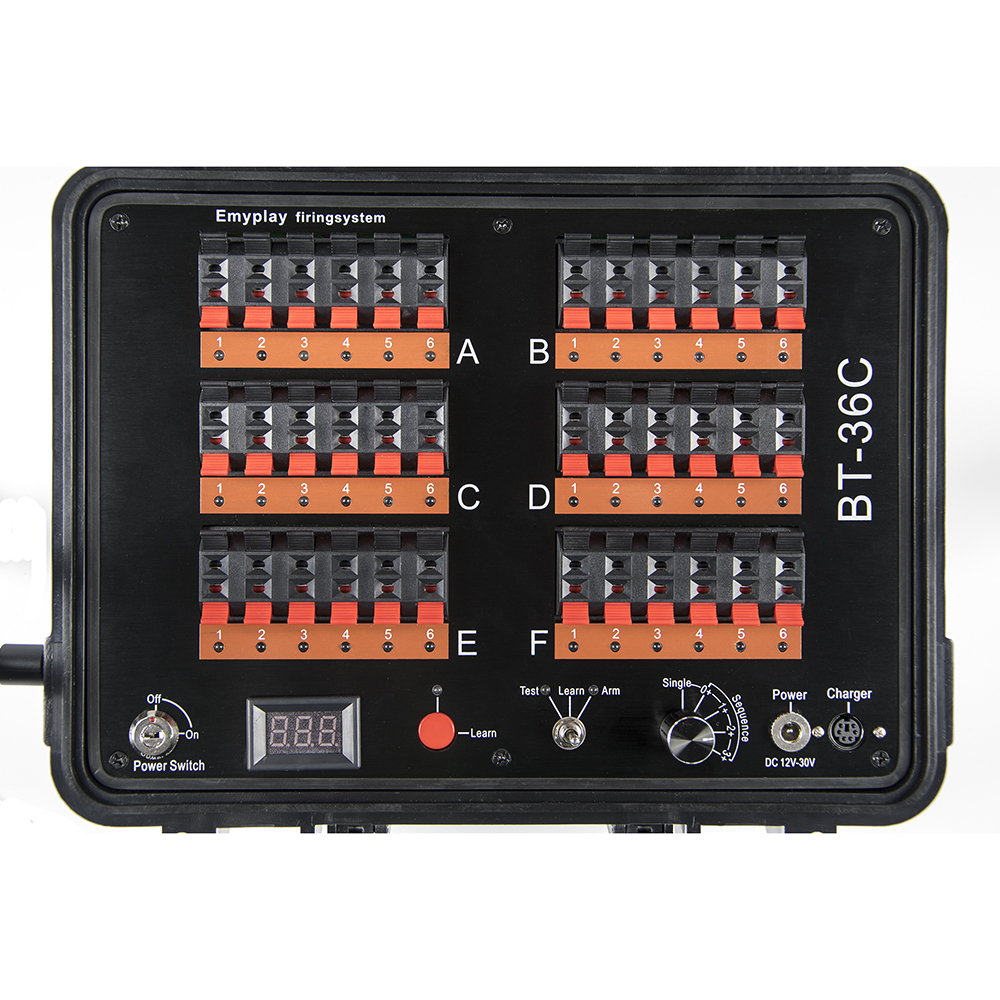

Receiver Feature:
  • The BT-36C has four fire modes::
    •  Single mode(Dividual Fire): Fire one cue according to the signal of the transmitter..
    • Sequence mode(Sequential Fire, Salvo Fire and Step Fire): 0.1 Sec. -4.0 Sec. interval ,ALL,Step:
      •  Press the "0.1-1.0" button of the transmitter,the receiver will fire at a identical time  interval 0.1 Sec.-4.0 Sec.
      •  Press the "All"  button of the transmitter to fire all cues at the same time.
      •  Press the "Step" button of the transmitter to fire from cue A1 to F6.
  • The receiver has 36 cues,each cue could fire 6-8 pcs igniters in parallel or 12 pcs igniters in series.
  • Test Function: The led of cue will turn off  if the igniter is connecting well.
  • Power Supply : You can use internal or external power. (1) Internal power:Li-Po battery,11.1V,5200mAh. (2) External power:DC 12-30V.
  • Voltmeter.
  • Transmitting Range: 200-300m
  • Frequency:FSK, 433MHz
  • Size: 280x230x98mm, Equipment case.
  • weight: 2.00 kg

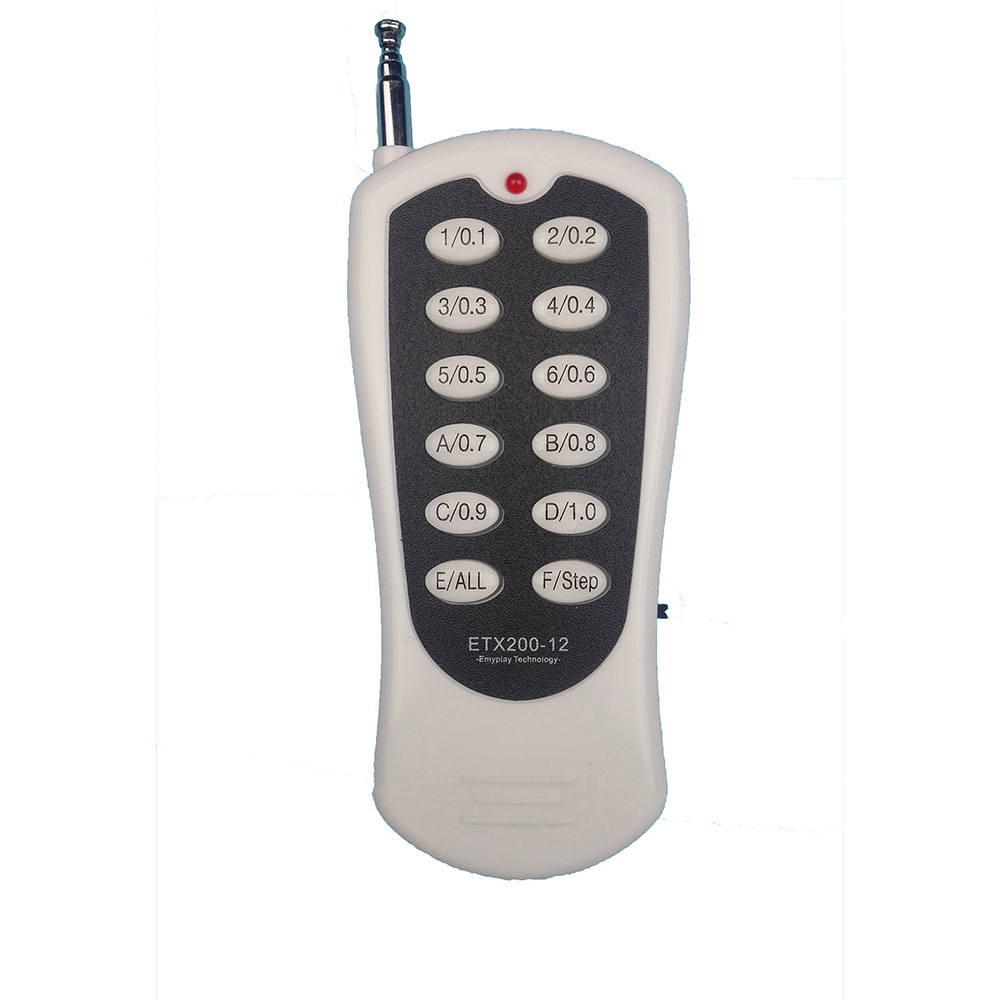

Transmitter Feature:
  • Transmitting Range: 250m
  • Frequency :  FSK, 433MHz
  • Power Supply: 12V23A battery
  • Power Switch
